Pi-allyl palladium complex

Johnson Matthey’s proprietary pi-allyl palladium complexes are state-of-the-art catalyst technologies engineered for superior catalytic activity across a broad range of cross-coupling applications. The pi-allyl scaffold design enables rapid generation of highly active Pd-phosphine catalytic species under basic or reducing conditions without inhibitory byproduct formation.

Advantages of pi-allyl complexes:
    - The air and moisture-stable pi-allyl complex products are offered as neutral chloride or cationic                   triflate complexes, enabling compatibility with the broadest scope of phosphine ligands to date.
  •     - Tri-alkyl-phosphines, bidentate phosphines and even bulky, electron rich advanced generation                     Buchwald ligands can be accommodated by the versatile pi-allyl scaffold.(1)
  •     - Pi-allyl palladium complex technology has been shown to be superior to other pre-catalyst systems             for Buchwald-Hartwig aminations and Suzuki-Miyaura couplings.(1,2)

Triflate pi-allyl palladium complex products

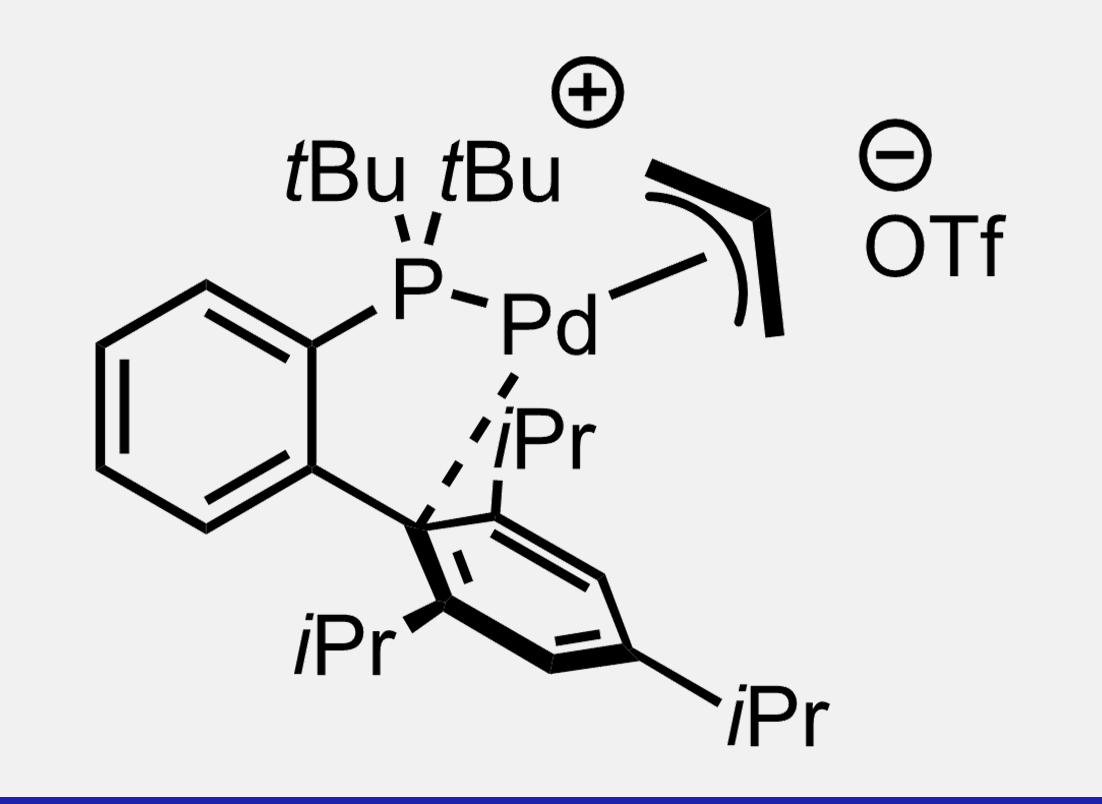

[tBuXPhos Pd(allyl)]OTf
Product number: Pd-174
CAS number: 1798782-25-8
Mol weight: 721.21
Reaction type: C-X

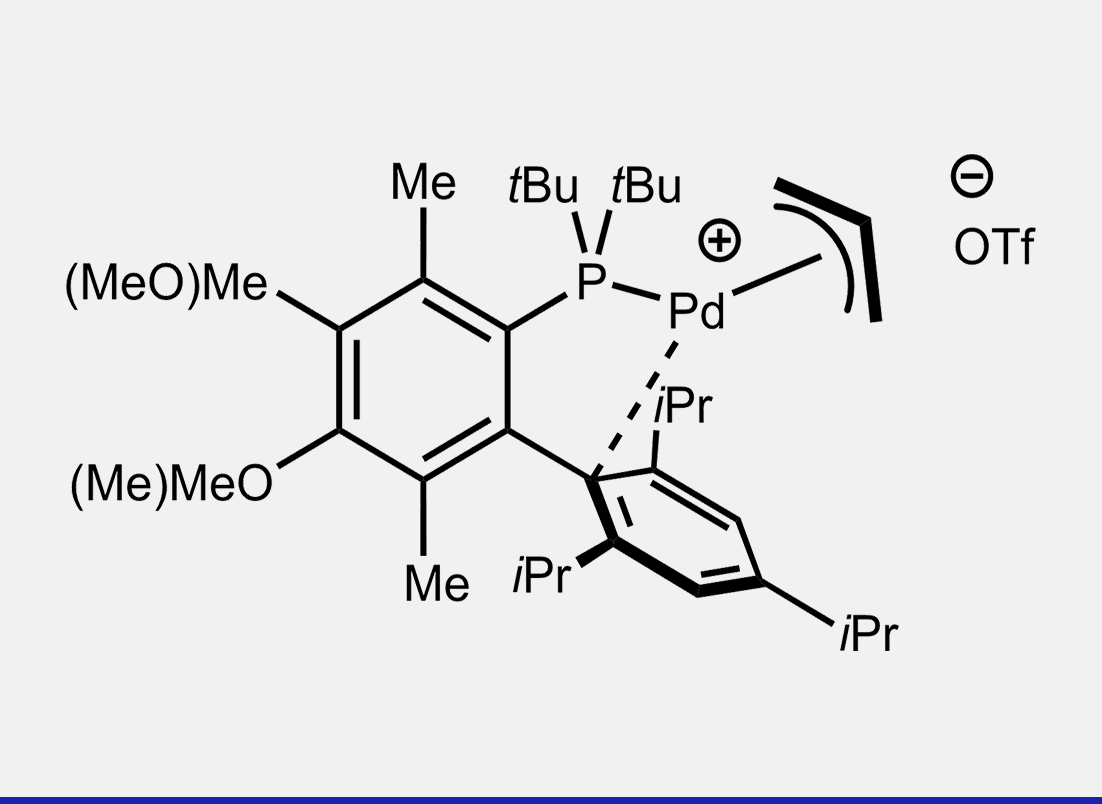

[Me₃OMetBuXPhos Pd(allyl)]OTf
Product number: Pd-216
CAS number: 2924017-86-5
Mol weight: 793.32
Reaction type: C-C
[tBuBrettPhos Pd(allyl)]OTf
Product number: Pd-175
CAS number: 1798782-02-1
Mol weight: 781.26
Reaction type: C-X

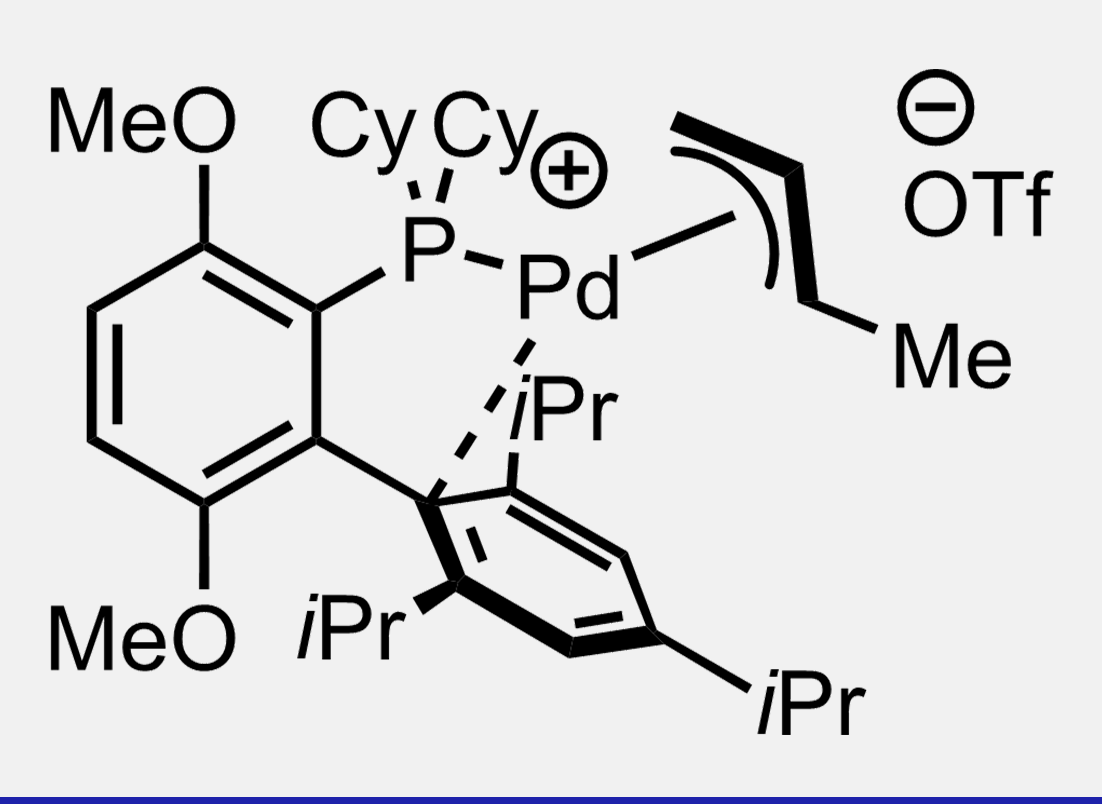

[BrettPhos Pd(crotyl)]OTf
Product number: Pd-173
CAS number: 1798782-11-2
Mol weight: 847.36
Reaction type: C-X

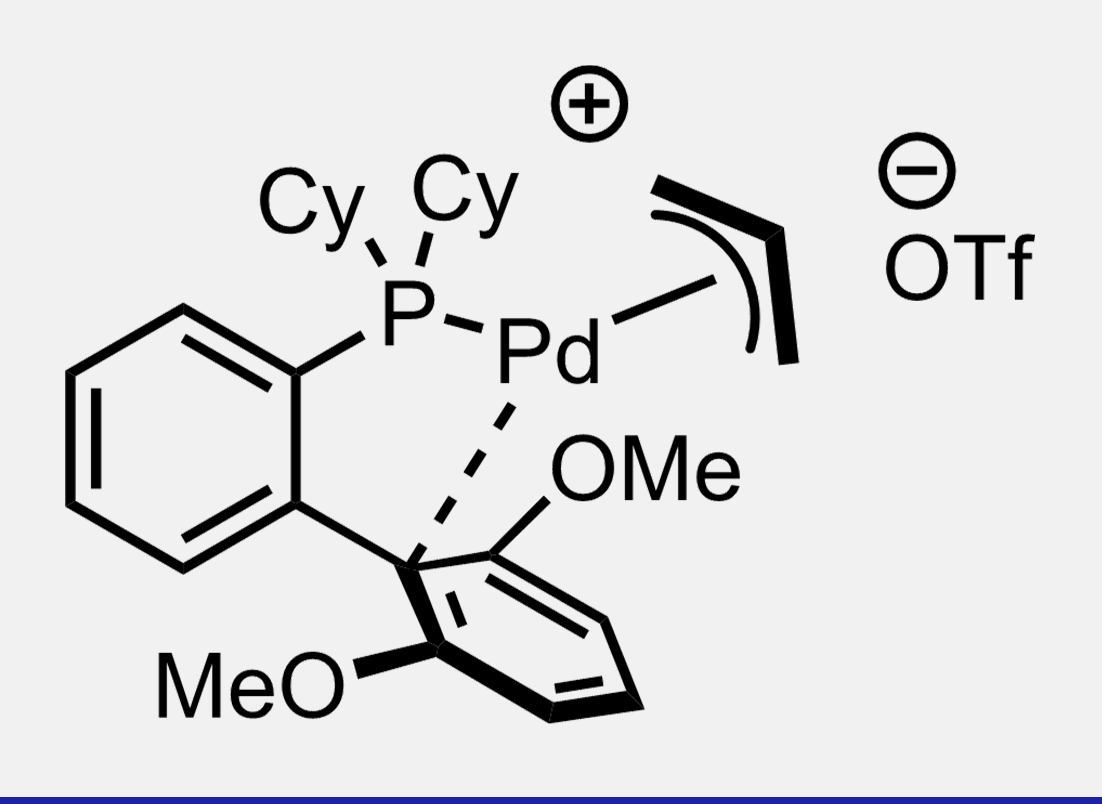

[SPhos Pd(allyl)]OTf
Product number: Pd-191
CAS number: 1798782-25-8
Mol weight: 707.09
Reaction type: C-C

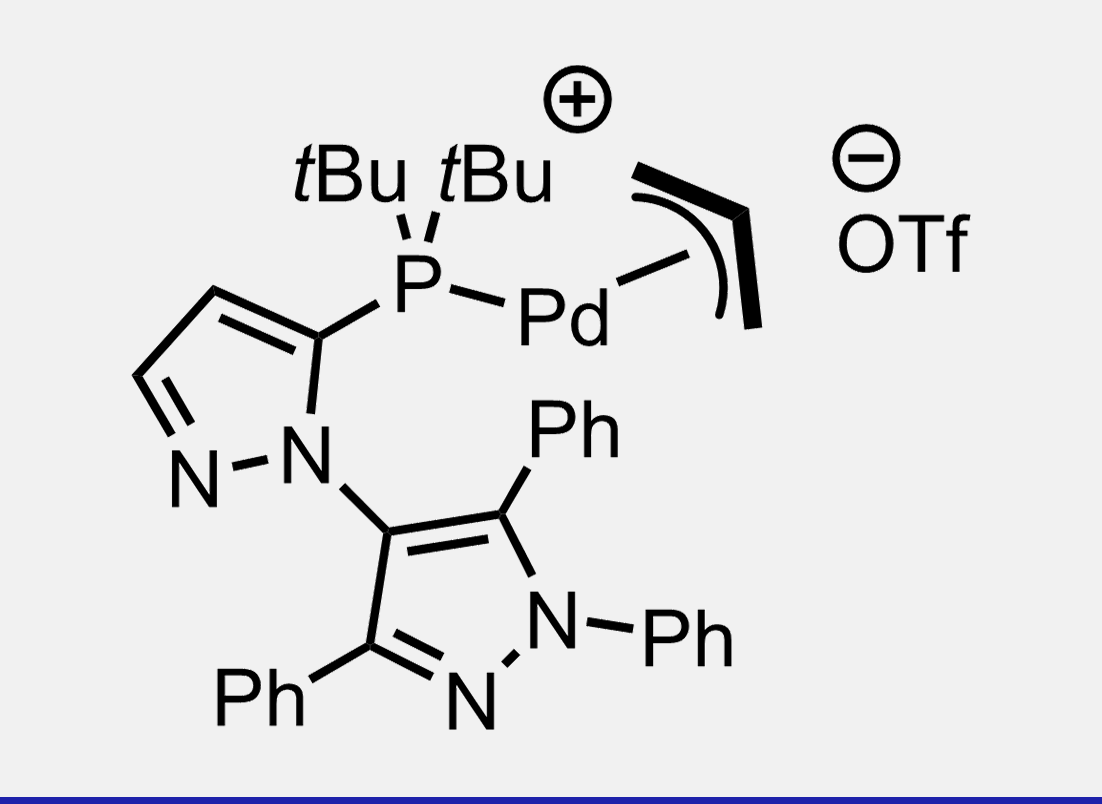

[BippyPhos Pd(allyl)]OTf
Product number: Pd-180
CAS number: 146558-62-0
Mol weight: 803.19
Reaction type: C-C
[RockPhos Pd(allyl)]OTf
Product number: Pd-215
CAS number: 1798782-31-6
Mol weight: 756.26
Reaction type: C-X

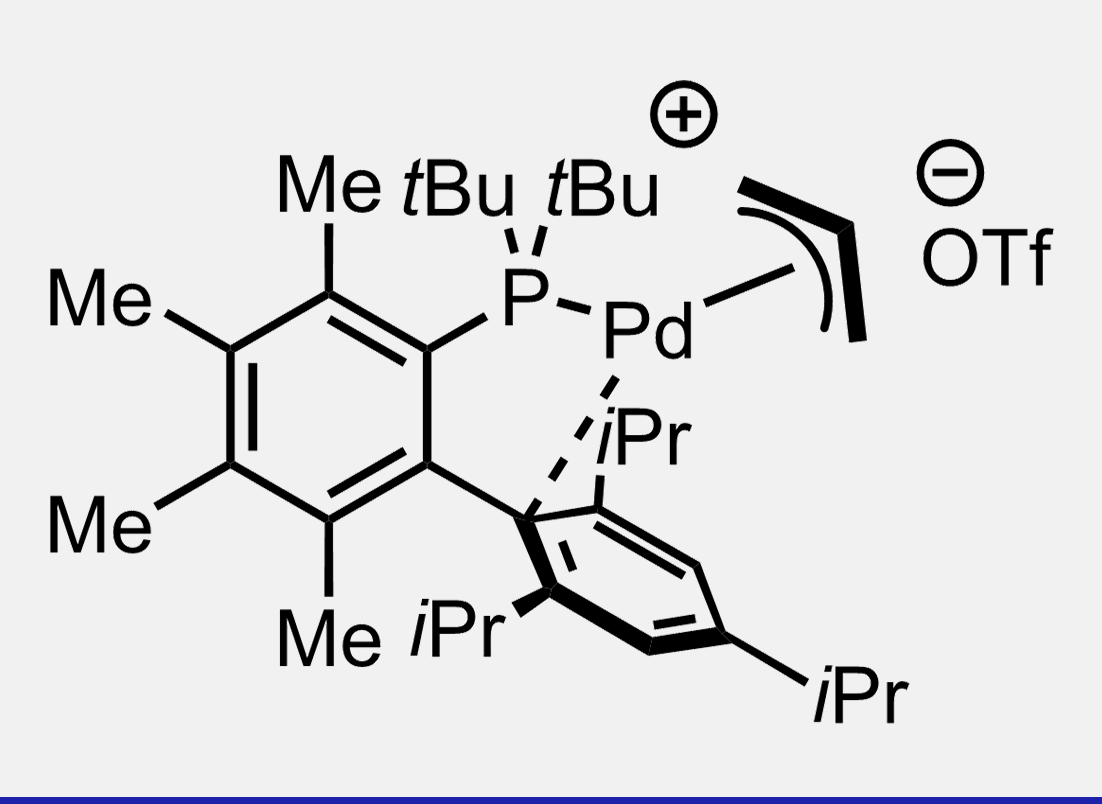

[Me₄tBuXPhos Pd(allyl)]OTf
Product number: Pd-214
CAS number: 1798782-29-2
Mol weight: 777.32
Reaction type: C-X

Chloride pi-allyl palladium complex products

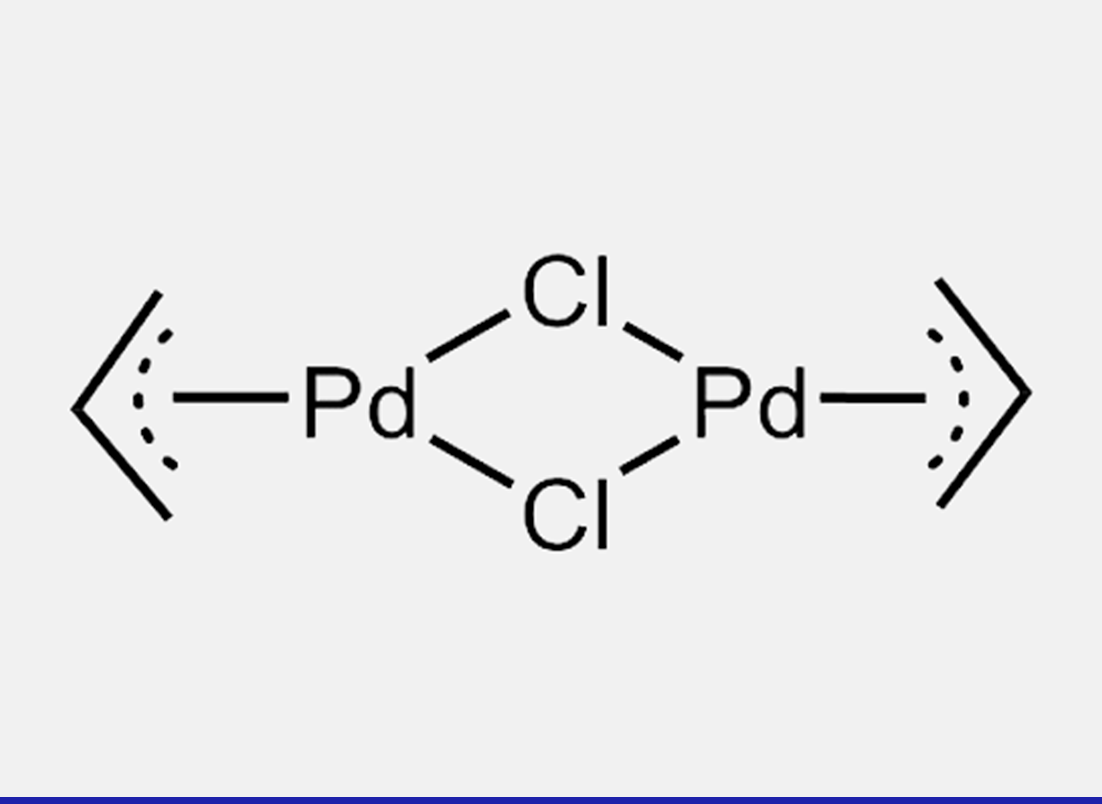

[PdCl (allyl)]₂
Product number: Pd-110
CAS number: 12012-95-2
Mol weight: 365.89
Reaction type: C-C, C-N

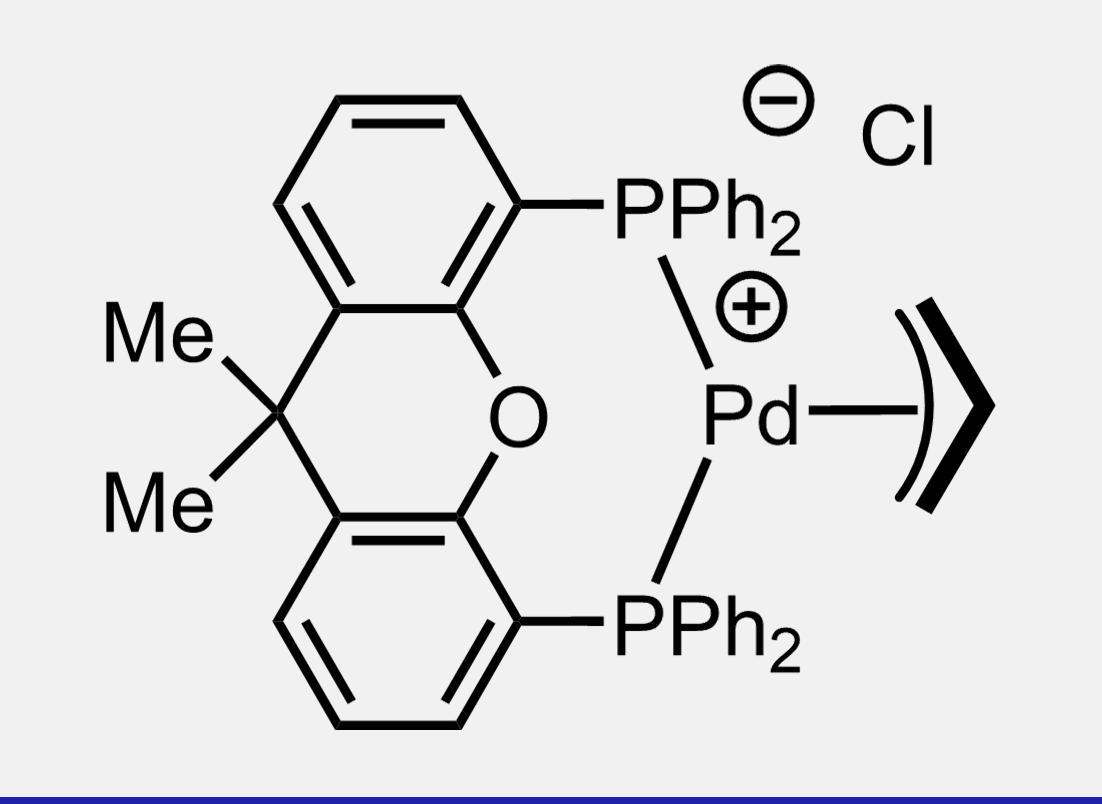

XantPhos Pd(allyl) Cl
Product number: Pd-177
CAS number: 879689-28-8
Mol weight: 761.57
Reaction type: C-C, carbonylation

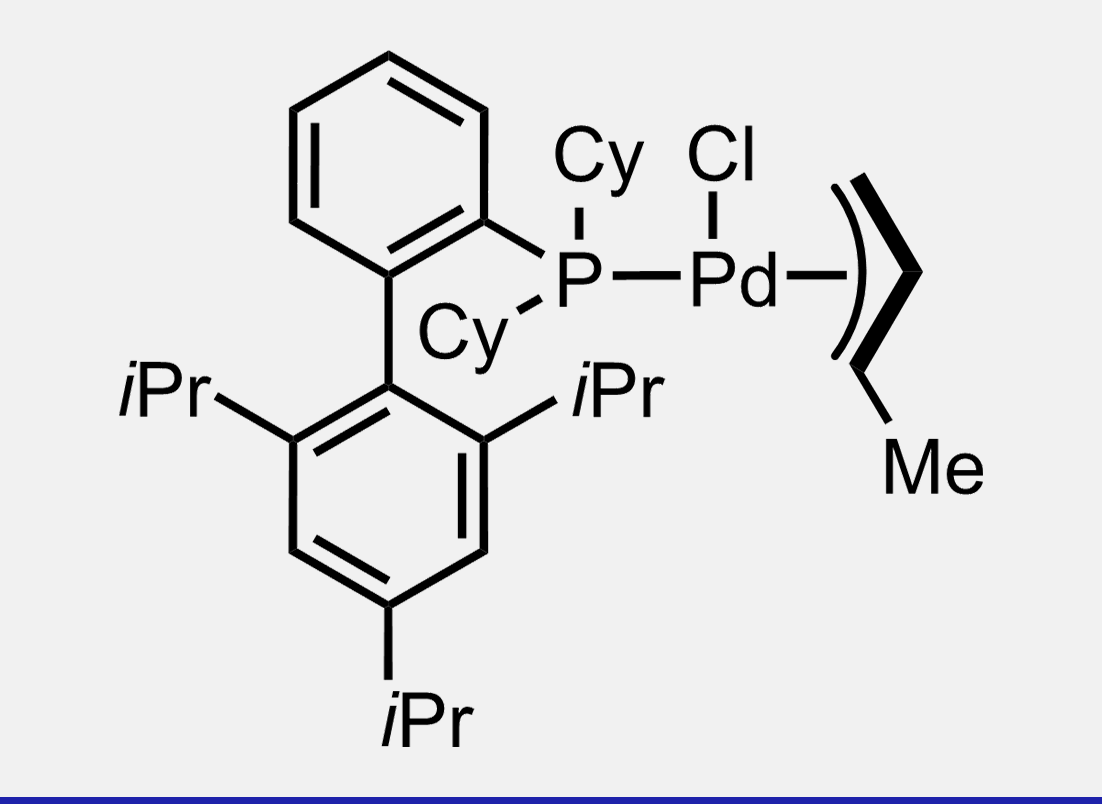

XPhos Pd(crotyl)Cl
Product number: Pd-170
CAS number: 879689-47-1
Mol weight: 890.56
Reaction type: C-C

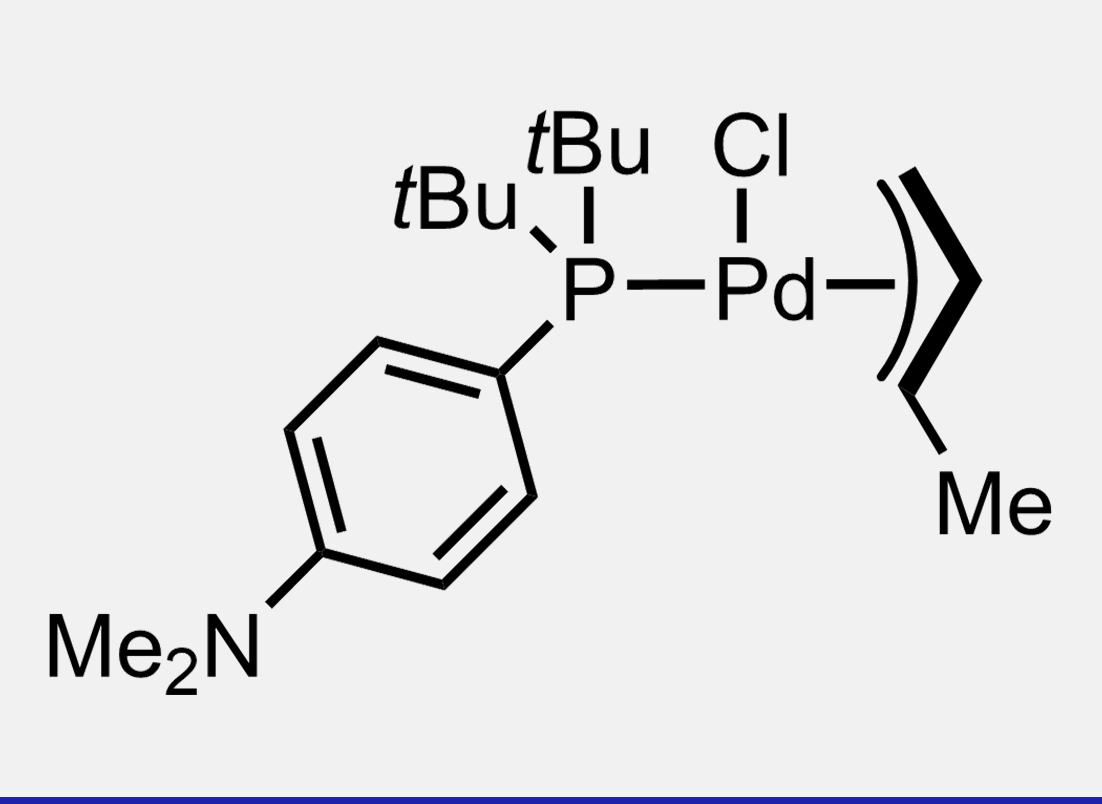

AmPhos Pd(crotyl)Cl
Product number: Pd-161
CAS number: 1334497-06-1
Mol weight: 462.35
Reaction type: C-C

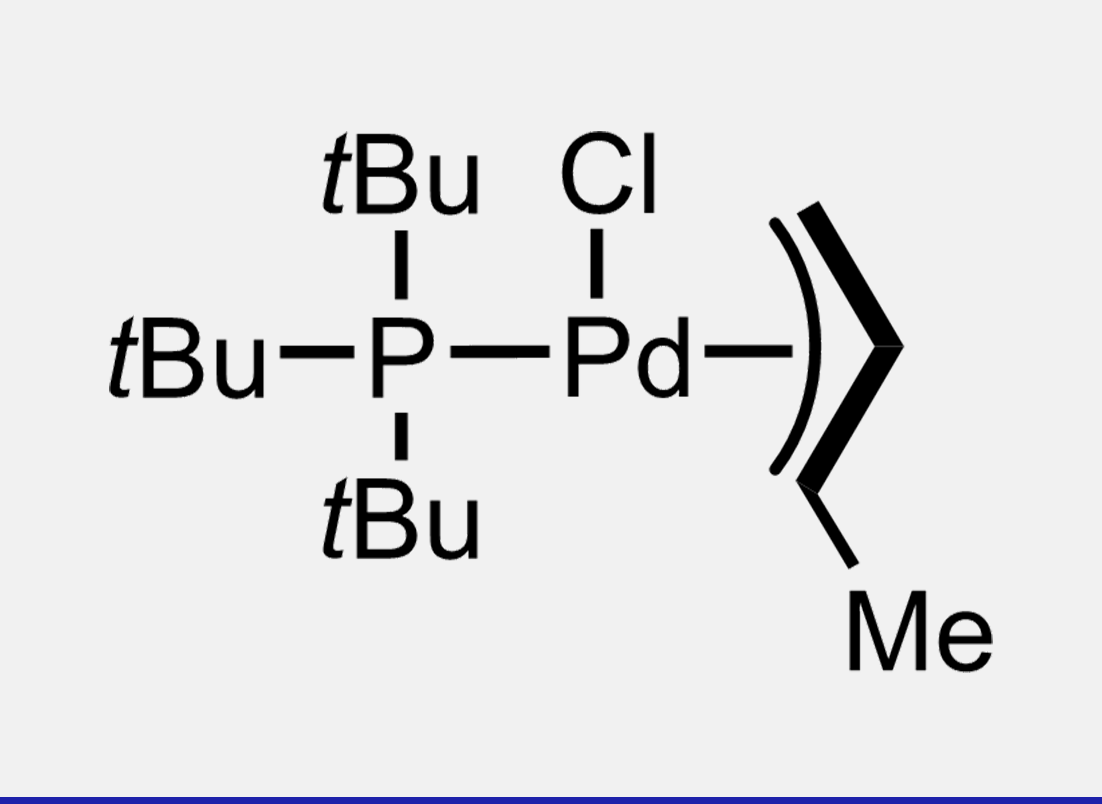

P(tBu₃) Pd(crotyl)Cl
Product number: Pd-162
CAS number: 1334497-00-5
Mol weight: 399.29
Reaction type: C-C

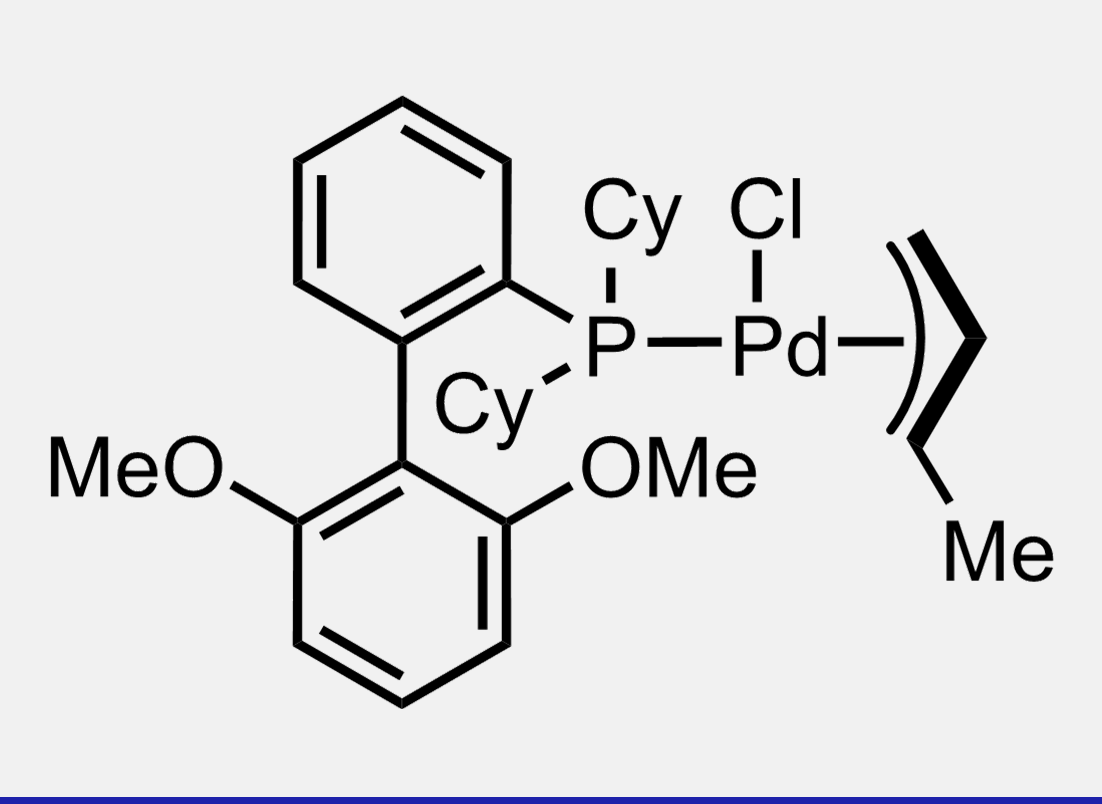

SPhos Pd(crotyl)Cl
Product number: Pd-172
CAS number: 1798781-99-3
Mol weight: 607.51
Reaction type: C-C

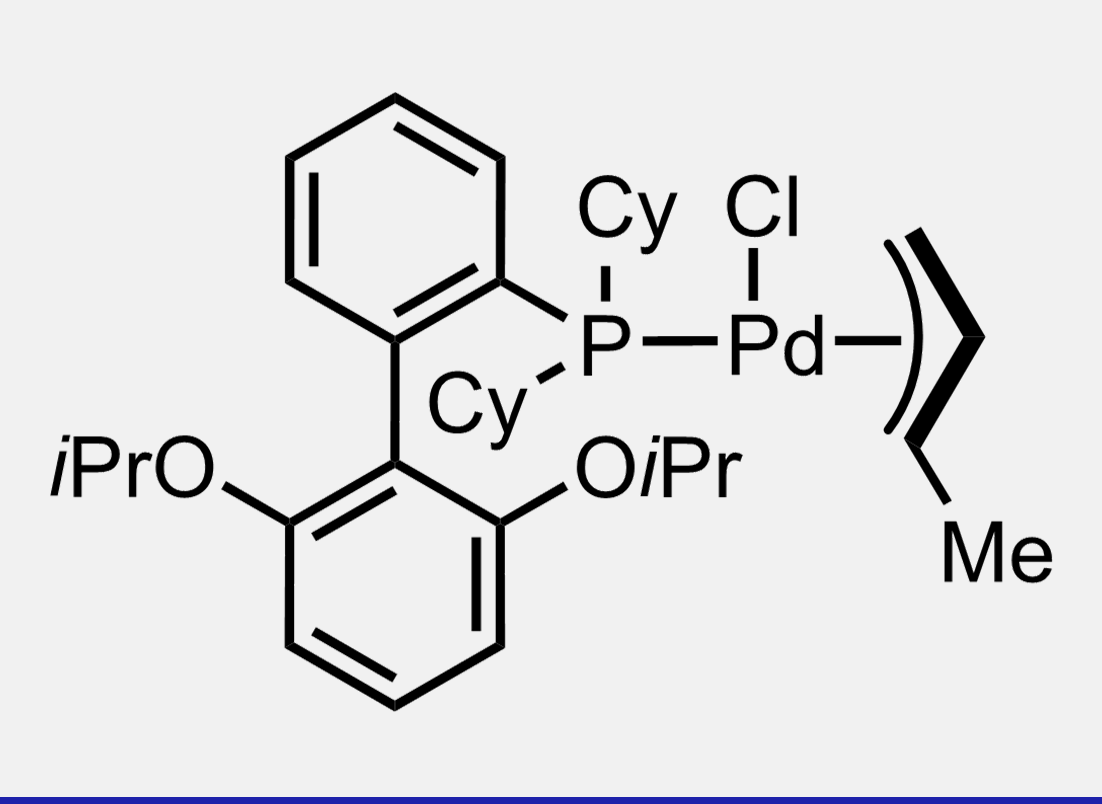

RuPhos Pd(crotyl)Cl
Product number: Pd-171
CAS number: 1798781-96-0
Mol weight: 663.62
Reaction type: C-C

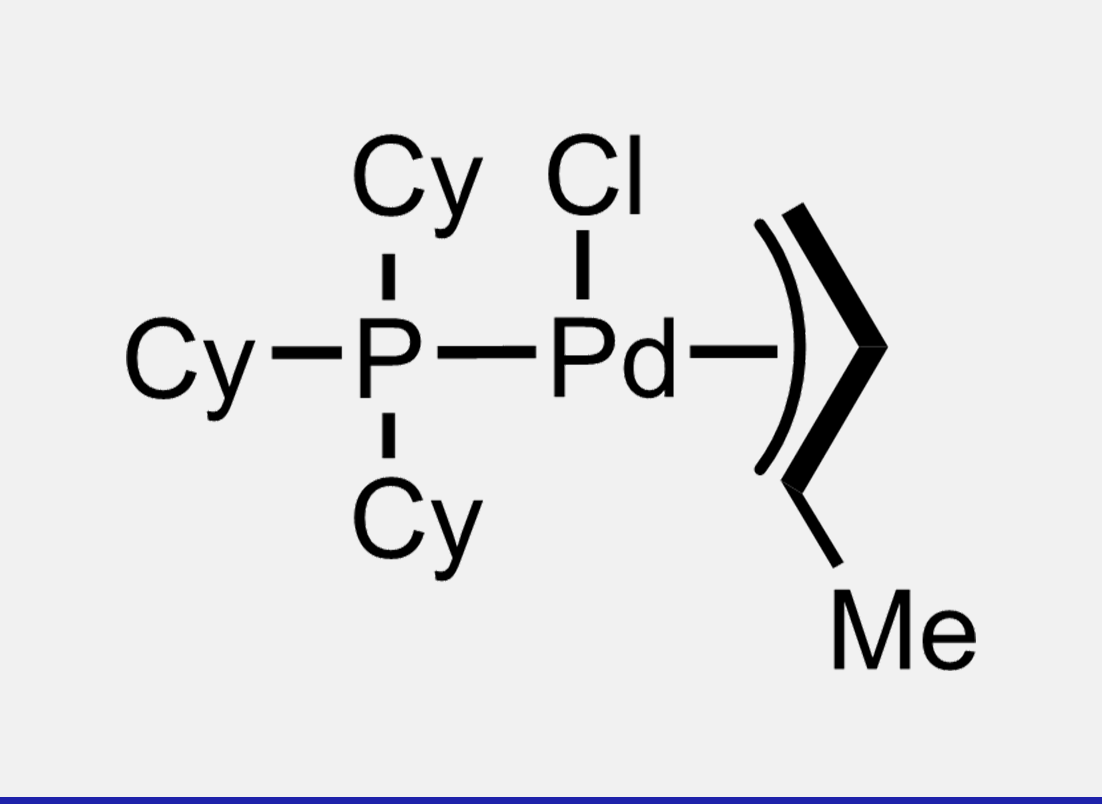

P(Cy)₃ Pd(crotyl)Cl
Product number: Pd-178
CAS number: 307494-95-7
Mol weight: 477.41
Reaction type: C-C

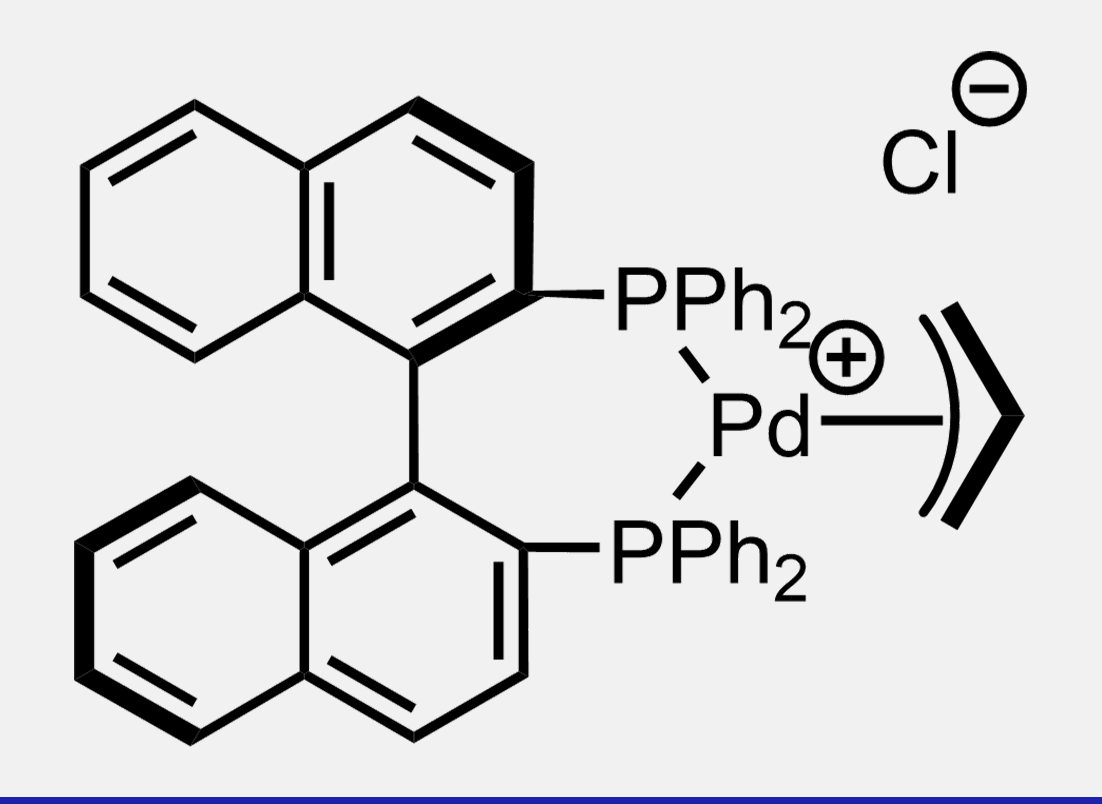

[(R)-BINAP Pd(allyl)]Cl
Product number: Pd-176
CAS number: 879689-47-1
Mol weight: 890.56
Reaction type: C-C

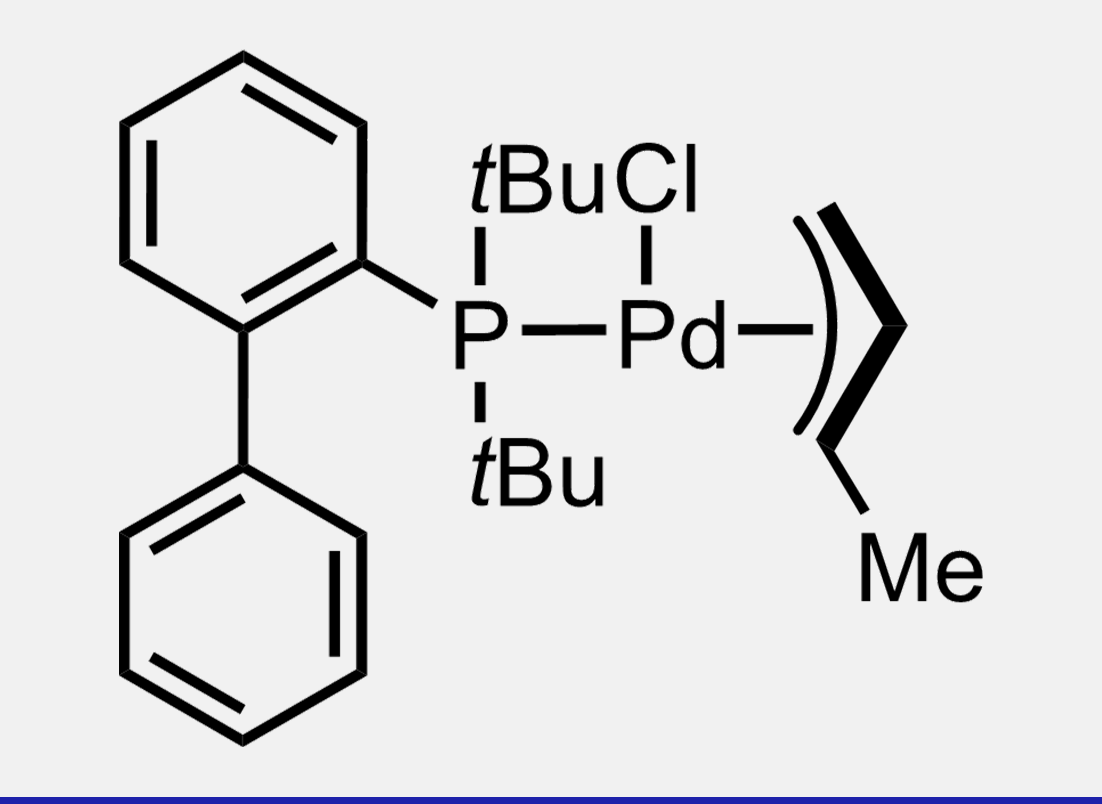

JohnPhos Pd(crotyl)Cl
Product number: Pd-189
CAS number: 1798782-05-4
Mol weight: 495.38
Reaction type: C-C

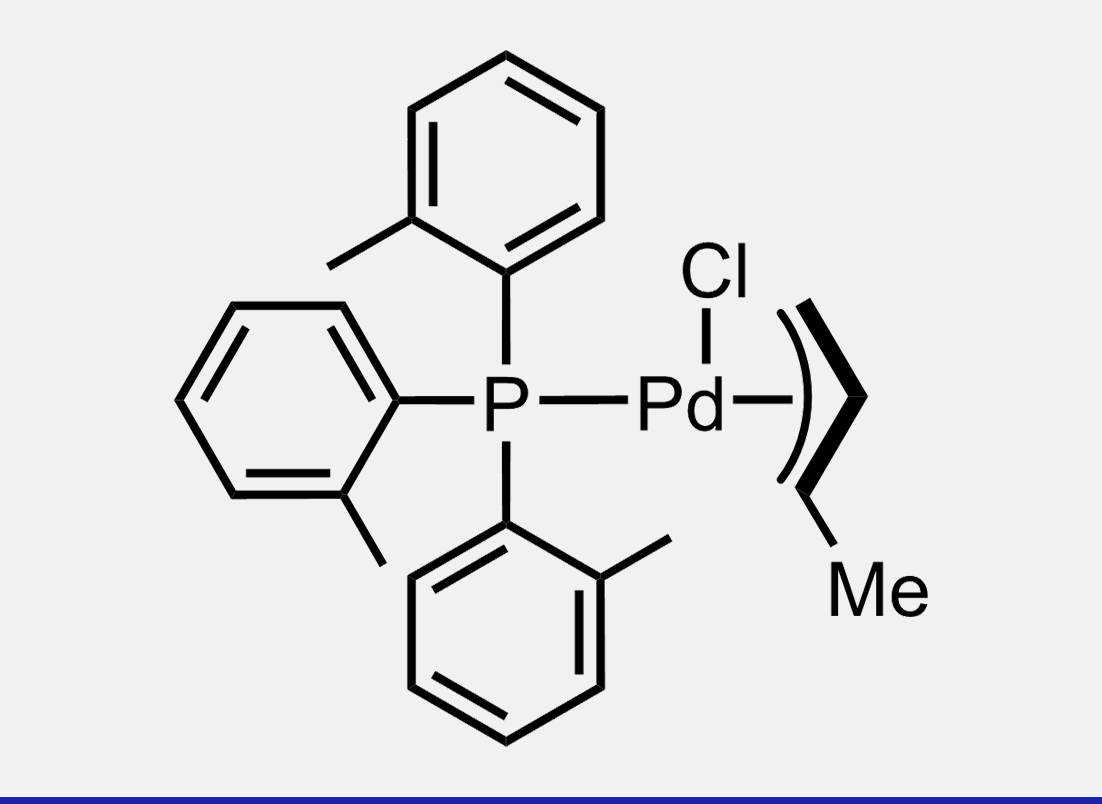

P(o-Tol)₃ Pd(crotyl)Cl
Product number: Pd-181
CAS number: 1385042-42-1
Mol weight: 501.34
Reaction type: C-C

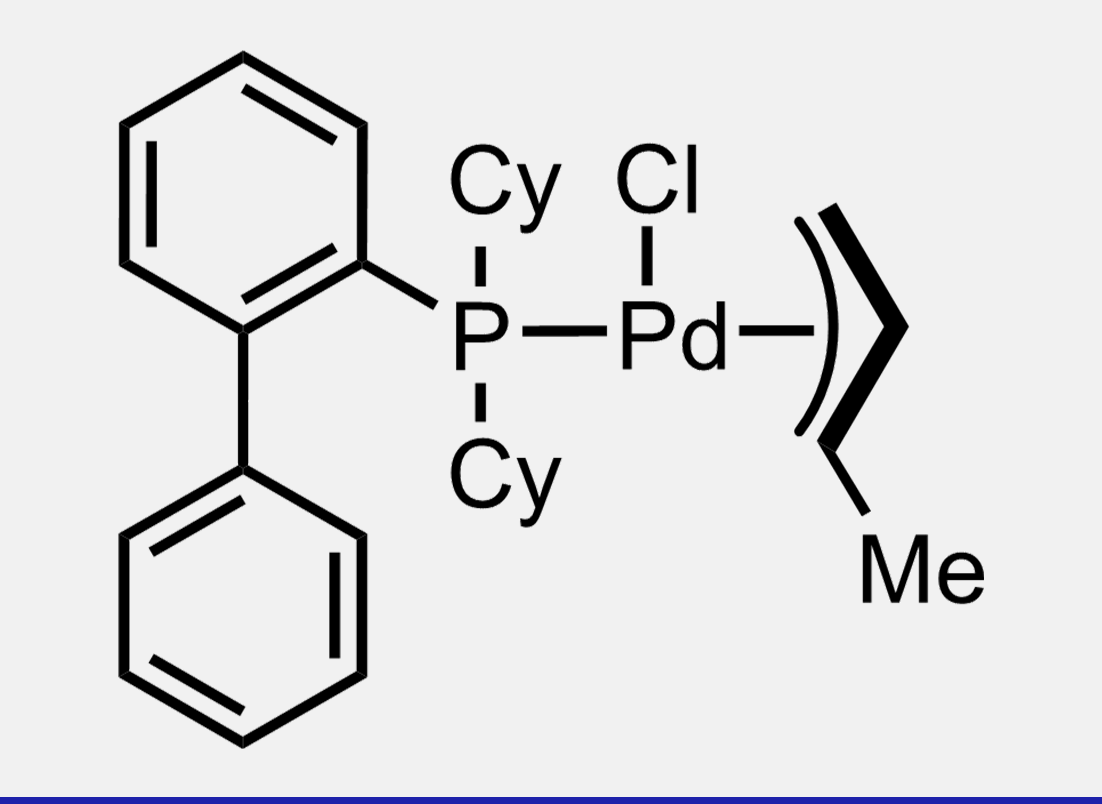

CyJohnPhos Pd(crotyl)Cl
Product number: Pd-188
CAS number: 692782-19-7
Mol weight: 547.46
Reaction type: C-C

Get in touch

Send us a message to request a quote or ask our advice. We'd be happy to hear from you.

References:

  1.      1. DeAngelis, A.J.; Gildner, P.G.; Chow, R.; Colacot, T.J. J. Org. Chem. 2015, 80, 6794–6813
  2.      2. Gildner, P.G.; DeAngelis, A. J.; Colacot, T.J. Org. Lett. 2016, 18, 1442−1445
